Understanding Solar Panel Shading: Bypass Diodes, Series vs. Parallel Arrays

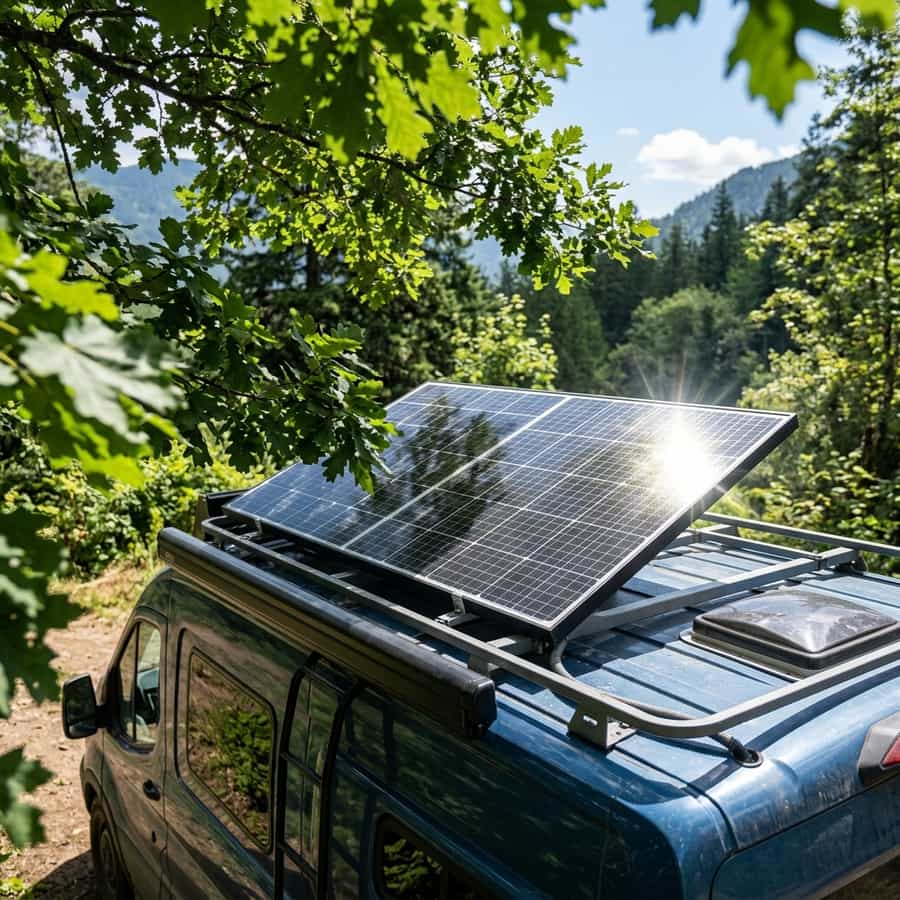

In mobile off-grid solar systems, shading is an inevitable challenge. Unlike residential solar arrays that are installed on open roofs free of obstructions, camper vans and RVs are constantly parked under trees, near utility poles, or adjacent to roof-mounted gear like air conditioners, TV antennas, and MaxxAir fans. Even a tiny shadow cast across a single solar panel can cause a disproportionate drop in total array output, leaving you with depleted batteries.

The sensitivity of solar panels to shading is rooted in their electrical design. Solar panels are composed of multiple silicon cells connected in series. Because current in a series circuit is limited by the highest resistance element, a single shaded cell acts as a bottleneck, blocking the current flow of the entire series string. To mitigate this, solar manufacturers integrate bypass diodes into the panel junction box.

This technical guide will examine the electrical physics of solar cell shading, detail how bypass diodes operate to redirect current, and compare the shading tolerance of series vs. parallel array configurations. We will look at circuit designs, power curves, and installation best practices to help you optimize your mobile solar harvest.

1. The Physics of Cell Shading and the Bottleneck Effect

A standard 12V monocrystalline solar panel is composed of 32 to 36 silicon cells connected in series. Each cell outputs approximately 0.5V to 0.6V under sunlight, combining to yield an open-circuit voltage (Voc) of roughly 20V to 22V. In a series circuit, the current (Amps) running through the circuit must be uniform. When all cells are exposed to full sunlight, they produce maximum current, and energy flows efficiently.

When a shadow falls on a single cell, the cell stops generating electrical current and becomes a high-resistance resistor. Because it is in series, this single shaded cell blocks the current flow of all the other cells in the panel. The power output drops by 50% to 90%, even though 95% of the panel is in full sunlight. The non-shaded cells attempt to force current through the high-resistance shaded cell, causing it to heat up rapidly, creating a thermal hotspot that can crack the glass or degrade the silicon casing.

To prevent these hotspots and protect the panel, manufacturers install bypass diodes in the junction box. These diodes are connected in parallel with groups of cells (typically 18 cells per diode). Under normal conditions, the diodes are reverse-biased and do not conduct current. When a cell in a group is shaded, the voltage drop across that group changes polarity, forward-biasing the diode. Current then flows through the bypass diode, bypassing the shaded group of cells.

2. The Battle of Series vs. Parallel Array Configurations

When wiring multiple panels on an RV roof, you have two choices: series or parallel. In a series configuration, the positive terminal of one panel connects to the negative of the next, doubling the voltage while keeping current the same. In a parallel configuration, all positives connect together and all negatives connect together, keeping voltage the same while doubling the current. Each configuration has very different shading tolerance.

In a series array, if one panel is shaded, the current of the entire array is limited by that shaded panel, similar to a single cell bottleneck. While bypass diodes in the shaded panel will activate to keep current flowing, this drops the array's operating voltage. If the voltage drops below the minimum threshold required by the MPPT controller to charge the battery bank (typically battery voltage + 2V), the entire array stops charging, resulting in a 100% power loss.

In a parallel array, each panel operates independently. If one panel is partially or fully shaded, its current output drops, but the remaining panels continue outputting their full current at the design voltage. The MPPT controller's input voltage remains stable, allowing charging to proceed efficiently. For RVs and vans where partial shading is a daily occurrence, parallel wiring is generally the superior configuration for maximizing daily yield.

3. MPPT Sizing, Cable Sizing, and Blocking Diode Best Practices

Designing a parallel array requires paying close attention to cable sizing. Because parallel configurations combine currents (Amps) rather than voltages, the total current running from the roof to the charge controller is higher. For example, three 200W panels in parallel will output approximately 30A of current at 20V, while the same panels in series output 10A at 60V. Sizing the cables is critical to prevent voltage drops.

Installers should use at least 10 mm² (8 AWG) or 16 mm² (6 AWG) copper cables for parallel runs to limit voltage drop to under 2%. Additionally, in parallel arrays, if one panel develops an internal short circuit, the other panels will feed their current into the shorted panel, creating a thermal and fire hazard. To prevent this, install an inline fuse (typically 15A) on the positive lead of each panel in a parallel array before combining them.

Furthermore, choose an MPPT charge controller that can handle the high input current. When sizing the controller, ensure its maximum input current rating is higher than the combined short-circuit current (Isc) of the parallel array. MPPT charge controllers will automatically limit their output current to protect themselves, but exceeding the input current rating can cause internal damage, rendering the system inoperable.

4. Return on Investment (ROI) and System Amortization Profile

The ROI of optimizing your solar array configuration for shading is measured in daily energy yield. An optimized parallel array can yield 30% to 50% more energy per day under typical RV conditions (partial shading from roof gear, trees, or vents) compared to a series array. Over a year of off-grid travel, this extra yield represents hundreds of kilowatt-hours of free energy.

Assuming a 600W solar array costs $600 to install, a series configuration that loses 40% of its potential yield due to shading results in a loss of approximately 240kWh of potential energy per year. At campsite electricity rates or alternator charging costs (fuel), this represents a financial loss of $100 to $150 per year. Wiring in parallel recovers this yield, paying back the minor extra cost of combined fuses and thicker cables in less than six months.

Additionally, by maximizing solar harvest, you reduce your reliance on engine idling or generator runs to charge batteries. This saves fuel, reduces engine maintenance costs, and extends generator lifespans, providing a substantial indirect financial return. It ensures you have clean, quiet, and reliable power wherever you park your vehicle.

5. Troubleshooting, Preventative Maintenance, and Electrical Safety

Troubleshooting shading issues starts with inspecting the solar panel surfaces. Dust, leaves, bird droppings, or snow act as localized shading, triggering bypass diodes and reducing panel output. Clean your solar panels monthly using water, a soft brush, and a non-abrasive soap. Inspect the glass surfaces for cracks, which allow water ingress and corrode cell interconnections.

Preventative maintenance includes testing individual panel output. If your array output is low, disconnect the panels and measure the open-circuit voltage (Voc) and short-circuit current (Isc) of each panel individually using a digital multimeter on a sunny day. A panel with a damaged bypass diode will show a significantly lower Voc (typically reduced by 33% or 66%) under sunlight, indicating diode failure.

Lastly, ensure all MC4 connectors on the roof are fully seated, locked, and waterproofed. Loose or damaged connectors can create high-resistance points, causing voltage drops and localized heating. Using UV-resistant cable ties to secure cables close to the panel frame prevents them from rubbing against the sharp edges of the mounting brackets, maintaining electrical safety.
